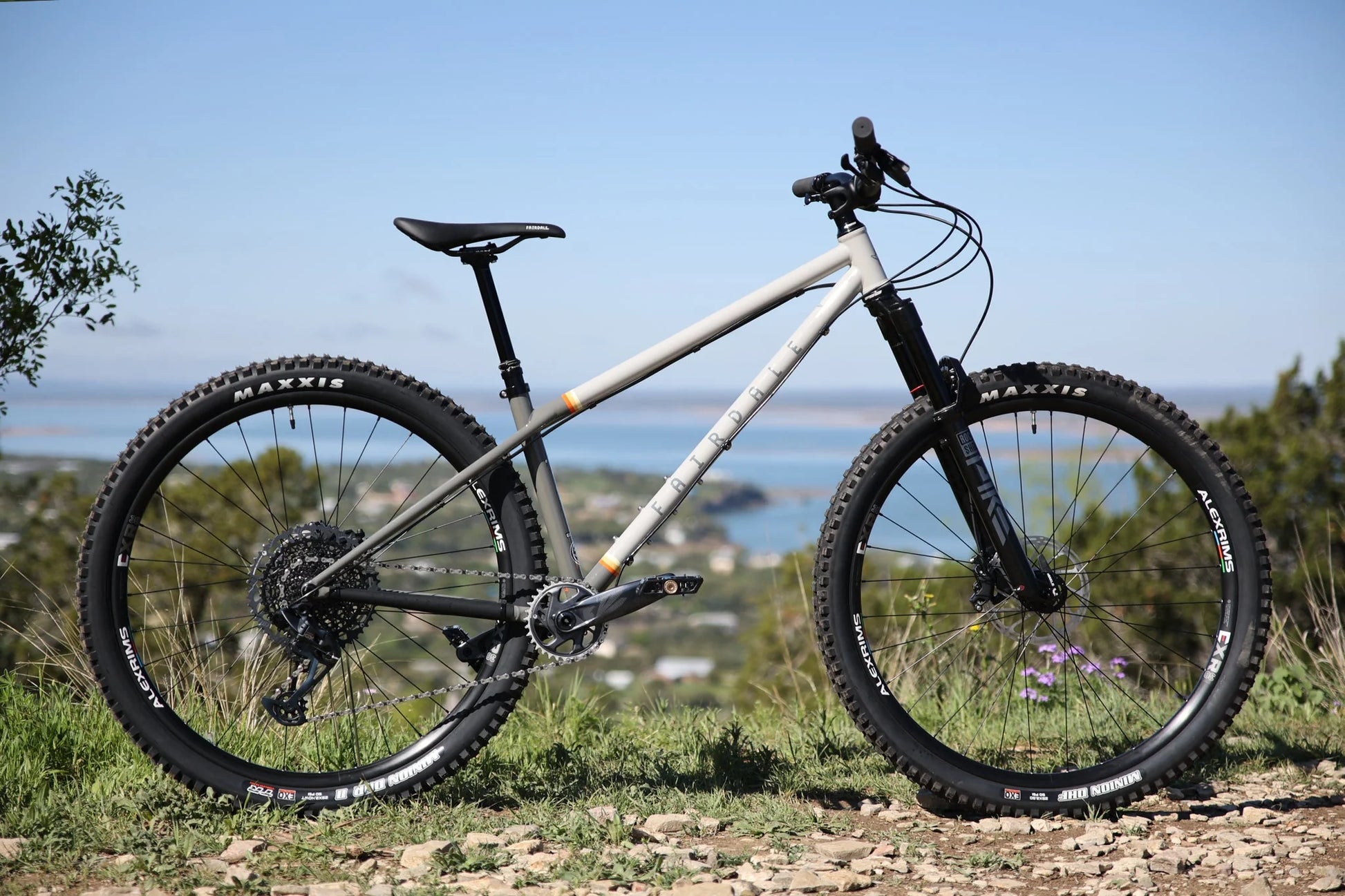

INTRODUCING THE FAIRDALE ELEVATOR.
Fairdale is happy to introduce the Elevator; our 29" hardtail mountain bike that comes fully equipped with a SRAM GX Eagle groupset, a RockShox Pike fork, Alex wheels, Maxxis tires and more.
The Fairdale Elevator is a BMX-inspired, full chromoly all-arounder with a geometry that is focused on nimble maneuverability and predictable climbing and descending. While many modern bikes are long and low, the Elevator’s unique ride-feel will let you easily throw in a manual or re-adjust your position on a line, thanks to the super short 406mm chainstay length.
As always, making the ride fun is our main priority. This is a bike that lets you feel like a rider again instead of being a passenger. Proudly sticking to Fairdale’s user-friendly approach to frame construction, its straight seat tube will allow you to fully insert a dropper post of the maximum possible drop, and the Elevator’s removable, external cable routing is a breeze for assembly and maintenance.
BIKE FEATURES
- SRAM GX Eagle groupset
- RockShox Pike fork
- Maxxis Minion tires
- Alex wheelset
FRAME FEATURES
- 100% 4130 chromoly 29” rigid frame
- Butted top tube, down tube, and seat tube
- Highly maneuverable BMX-inspired geometry
- Investment cast yoke allows for extra short chain stays and 2.5” tire clearance
- External brake, derailleur, and dropper post routing with removable hardware
- Extensive hardware for bottles, accessories and ISCG mounting
SIZING
Medium Reach: 5'7" - 5'11" height
Large Reach: 5'10" - 6'2" height
Sizing is approximate. Please consult with your local bike shop to assist with fit.
SPECS
Frame: Fairdale Elevator Frame with SRAM UDH
Fork: RockShox - Pike, 130mm Travel, 44mm Offset, 15mm x 110mm Boost Spacing
Handlebar: 30mm Rise, 9° Back, 5° Up, 35mm clamp, 7000 series AL
Stem: 50mm, 35mm Bore
Headset: FSA Orbit ITA
Brake Lever: SRAM DB8 Hydraulic
Brakes: SRAM DB8 Hydraulic
Grips: Lock-on
Saddle: Fairdale
Seat Post: TranzX Kitsuma Dropper Post (150mm M, 170mm L)
Seat Clamp: 35mm Fairdale Clamp
Cranks: SRAM GX, 170mm, DUB, Boost
Chainwheel: 32T X-SYNC™2
BB Parts: DUB, BSA
Pedals: Not Included
Rims: Alex EXR 30
Front Hub: Bear Pawls, 32H, Sealed, 6-Bolt, 15x110mm BOOST
Rear Hub: Bear Pawls, 32H, Sealed, 6-Bolt. 12x148mm BOOST, SRAM XD Driver
Front Tire: Maxxis Minion DHF, 29 x 2.50WT, Dual Compound, EXO
Rear Tire: Maxxis Minion DHR II, 29 x 2.40WT, Dual Compound, EXO/TR
Chain: GX Eagle, 12-speed
Cassette: GX Eagle, 10-52T, 12-Speed, Black
R. Shift Lever: SRAM GX EAGLE Trigger, X-actuation, 12-speed
R. Derailleur: SRAM GX EAGLE, Long Cage
GEOMETRY
Size | Medium | Large |
Fork Travel | 130mm | 130mm |
Fork Axle-to-Crown | 541mm | 541mm |
Fork Offset | 44mm | 44mm |
Wheelbase | 1177mm | 1200mm |
Front-Center Length | 776mm | 799mm |
Top Tube (Effective) | 620mm | 639mm |
Seat Tube (BB Center to TT Center) |
380mm | 400mm |
Seat Tube Angle | 76° | 76° |
Head Tube Length | 102mm | 112mm |
Head Tube Length w/Lower Headset Cup |
115mm | 125mm |
Head Tube Angle | 65.5° | 65.5° |
Chain Stay Length | 406mm | 406mm |
Standover | 729mm | 745mm |
Stack | 627mm | 636mm |
Reach | 463mm | 482mm |
BB Drop | 50mm | 50mm |
Rear Dropout Spacing (Boost Thru-Axle) |
12x148mm | 12x148mm |
Derailleur Hanger | SRAM UDH | SRAM UDH |
BB Type | 73mm threaded | 73mm threaded |
Seat Post (Dropper Ready) |
31.6mm | 31.6mm |
Max Post Insertion (With OneUp Dropper) |
280mm | 300mm |
Seat Clamp | 35mm | 35mm |
Rear Tire Max Clearance | 29x2.50" | 29x2.50" |
Sprocket Max Clearance | 32-T round | 32-T round |
Brake Rotor Clearance (IS Mount) |
203mm | 203mm |
Wheel Size | 29" | 29" |
