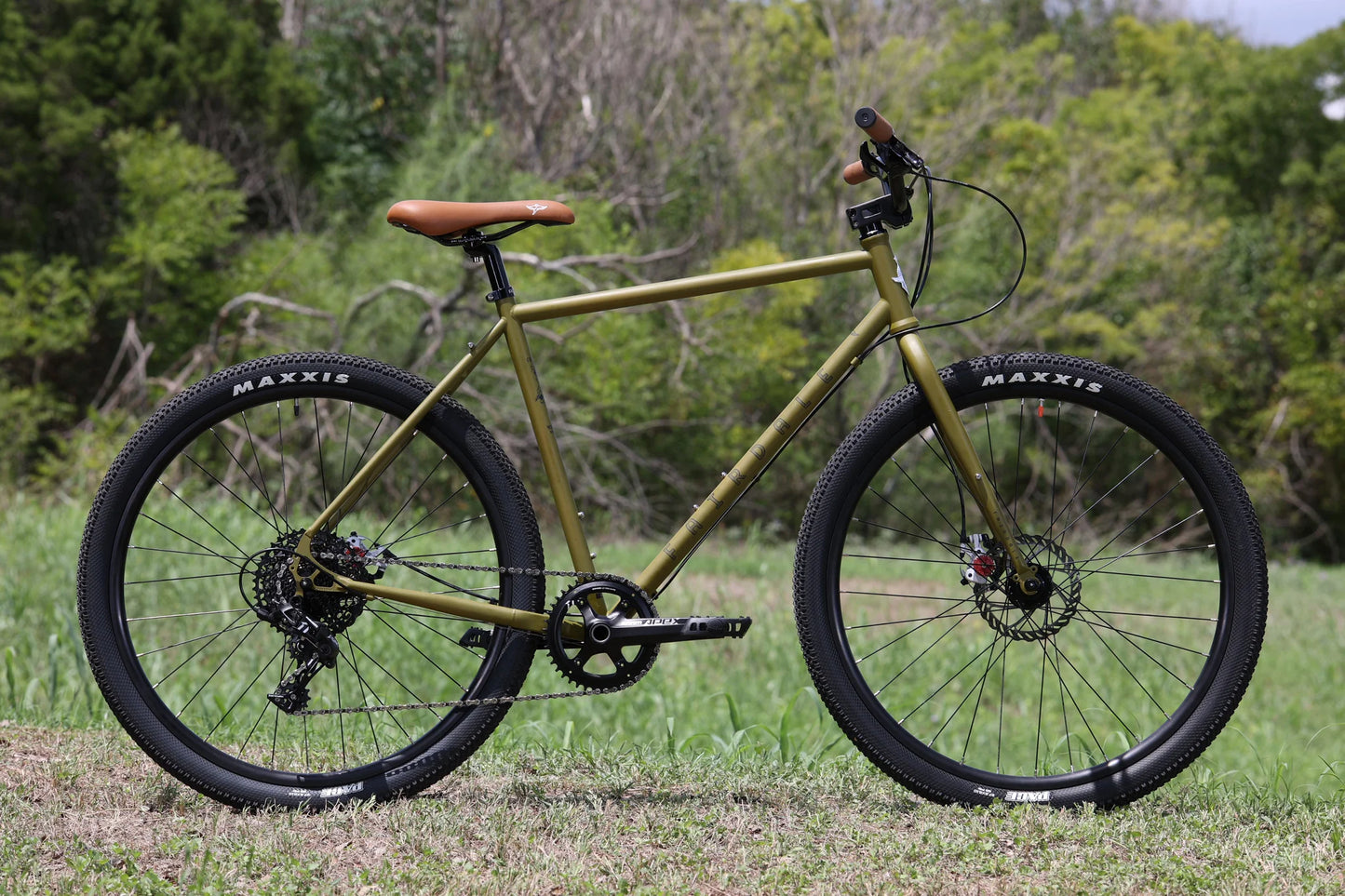

FAIRDALE WEEKENDER NOMAD MX Matte Army Green
FAIRDALE WEEKENDER NOMAD MX Matte Army Green
The Weekender Nomad MX is a fun and practical BMX inspired bike and 100% Fairdale.
The MX version of the Weekender is made to travel. While it can easily handle being a weekday commuter on rough city roads, it really shines when you take it for a long haul.
The Weekender MX's 100% 4130 chromoly frame and fork will welcome virtually anything that you can throw at it. This is our top of the line Weekender, and it comes equipped with an amazing parts build, like a SRAM Apex 1x derailleur and shifter, Avid disc brakes, SRAM Apex 1 cranks and Continental semi-knobby tires.
The MX features the Weekender’s redesigned geometry that is built around 27.5 x 2.1" tires, and also leaves plenty of space for compatibility with 700c wheels if you ever feel like changing it up.
Matte Army Green available in Medium and Large.
SIZING
Medium: 5'7" - 5'10" height
Large: 5'9" - 6'1" height
Sizing is approximate. Please consult with your local bike shop to assist with fit.
SPECS
Frame: 100% Chromoly Steel, with Rack and Fender mounts (M and L frame are compatible with 700c wheels)
Fork: 100% Chromoly. One-piece Machined Steerer Tube
Handlebar: Fairdale MX-4 Bar, 100% Chromoly
Stem: Sunday Freeze Front Load
Headset: FSA, Sealed Integrated
Brake Lever: Avid FR 5 (F&R)
Brake: Avid BB7 MTB
Grips: Fairdale Swan
Saddle: Fairdale Race
Seat Post: Micro Adjust, 27.2mm
Seat Clamp: Fairdale, 30mm
Cranks: SRAM Apex 1 (M & L=172.5mm)
Chainwheel: 42t, Narrow-Wide
BB Parts: Neco BB-501
Pedals: Odyssey Twisted PC
Rims: 650b, 32-Hole, Aluminum, Double Wall, Tubeless Compatible
Front Hub: Sealed Bearings, 32-H, Alum. Shell, Disc Brake Mount, w/Allen Skewer Axle
Rear Hub: Sealed Bearings, 32-H, Alum. Shell, Disc Brake Mount, w/Allen Skewer Axle
Tires: Maxxis Pace, 27.5"x2.1"
Chain: KMC X11
Driver: SRAM PG-1130, 11-42T, 11-Speed
R. Shift Lever: SRAM Apex 1, 11-Speed, Flat Bar
R. Derailleur: SRAM Apex 1, Long Cage, 11-Speed
Shift Cable: Fairdale with Jagwire inline adjuster
GEOMETRY
Size | S (52cm) | M (55cm) | L (58cm) | XL (60cm) |
Top Tube (Effective) | 523mm | 545mm | 579mm | 602cm |
Top Tube (Actual) | 505mm | 532mm | 559mm | 585mm |
Seat Tube (BB Center to TT Top) | 454mm | 485mm | 533mm | 576mm |
Seat Tube (BB Center to TT Center) |
414mm | 445mm | 493mm | 536mm |
Seat Tube Angle | 74° | 73° | 73° | 73° |
Head Tube Length | 120mm | 122mm | 146mm | 167mm |
Head Tube Angle | 70° | 71° | 71.5° | 71.5° |
Chain Stay Length | 415mm | 440mm | 440mm | 440mm |
Wheelbase | 1005mm | 1037mm | 1058mm | 1081mm |
Standover | 745mm | 765mm | 800mm | 830mm |
Stack | 517mm | 565mm | 589mm | 609mm |
Reach | 373mm | 380mm | 398mm | 414mm |
Fork Length | 390mm | 416mm | 416mm | 416mm |
Fork Offset | 50mm | 50mm | 50mm | 50mm |
BB Drop | 54mm | 72mm | 72mm | 72mm |
Dropout Spacing | 135mm | 135mm | 135mm | 135mm |
BB Type | English 68 | English 68 | English 68 | English 68 |
Seat Post | 27.2mm | 27.2mm | 27.2mm | 272.mm |
Seat Clamp | 30mm | 30mm | 30mm | 30mm |
Approx. Max Tire Width 27.5"/650b | 47mm |
54mm |
54mm |
54mm |
Approx. Max Tire Width 29"/700c | N/A | 53mm | 53mm | 53mm |
Wheel Size | 27.5" |
27.5" | 27.5" | 27.5" |
